[ INTEGRATED AND COMPACT BOARDS // IDENTIFIED COMPONENT ]

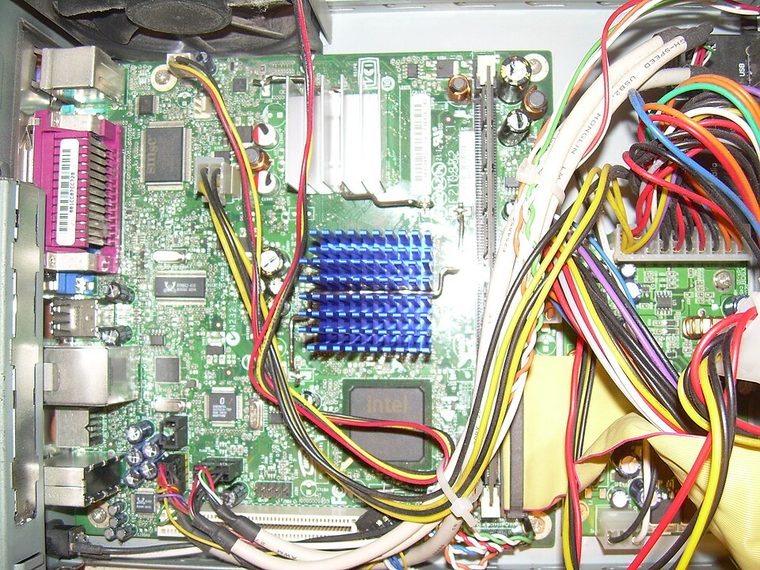

Intel D945GCLF2
Intel Atom 330 Mini-ITX board, 2008. This file identifies a specific part or clearly bounded model family, rather than an overview of the category.
IDENTIFY THE REVISION: Check the complete product code, suffix, board revision, region, firmware, and date code. Similar names do not guarantee the same hardware.
Part specifications
| Catalog subcategory | Integrated and compact boards |
|---|---|
| Catalog identity | Intel D945GCLF2 |
| Generation / family | Intel Atom 330 Mini-ITX board, 2008 |
| Architecture / ratings | Atom 330 dual-core with Hyper-Threading; Intel 945GC chipset; DDR2 SO-DIMM; integrated GMA 950; Mini-ITX. |
| Interface / fit | Memory capacity/speed and BIOS support are limited; onboard CPU cannot be replaced as a socketed desktop processor. |
| Variants / field identification | D945GCLF has a different single-core processor; check full suffix on PCB. |
| Evidence to collect | Photograph the nameplate and PCB labels; record test system, firmware, installed accessories, condition, and manual/datasheet revision used to verify specifications. |
Compatibility, care & service
- Check electrical signaling, pinout, voltage, current, connector, mounting and supported firmware before installation; do not rely on matching shapes alone.
- Inspect physical condition and manufacturer warnings; mains PSUs, CRTs, batteries and spinning media may retain hazardous energy or require specialist service.
- For vintage equipment, use the correct bus generation, BIOS, driver, media type, cable orientation and resource configuration documented for the machine.
- Record measured results separately from the manufacturer's published limits and state the setup and measurement conditions.
Model-specific notes
Memory capacity/speed and BIOS support are limited; onboard CPU cannot be replaced as a socketed desktop processor.
D945GCLF has a different single-core processor; check full suffix on PCB.
Sources & further reading
- Manufacturer / standards reference — Intel D945GCLF2Source for product-family specifications; compare exact suffix, revision, and region with the unit label.
- Manufacturer / standards reference — Intel D945GCLF2Source for product-family specifications; compare exact suffix, revision, and region with the unit label.
Links lead to manufacturer or standards references where available. If a source covers a family, use the exact model's manual as the final authority.
