[ MICE AND TRACKBALLS // IDENTIFIED COMPONENT ]

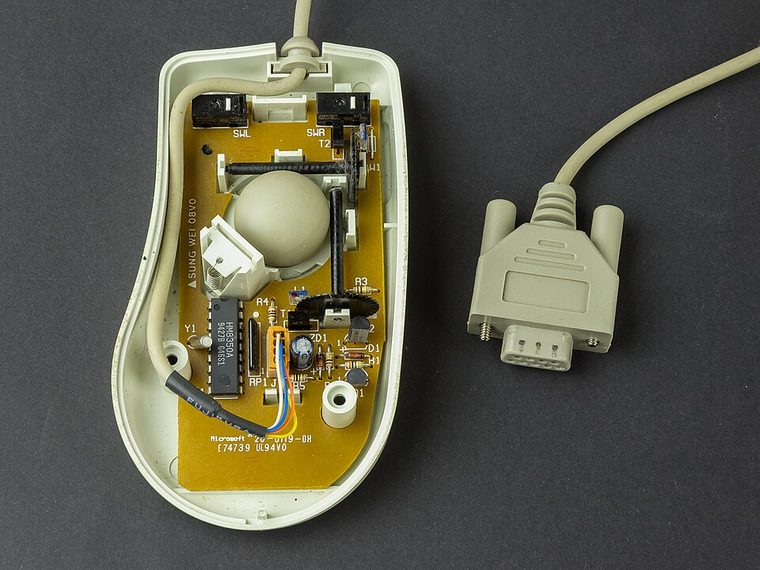

Microsoft Serial Mouse 2.0A
Serial optical/mechanical mouse, 1990s. This entry records a distinct product or well-defined family; differences among revisions and similarly named models are called out below.
MODEL IDENTIFICATION: Match the full model/part number, revision, and region to the item label and its manufacturer documentation. Where a family has multiple revisions, specifications below are not universal across the family.
Recorded specifications
| Cataloged part | Microsoft Serial Mouse 2.0A |
|---|---|
| Era / family | Serial optical/mechanical mouse, 1990s |
| Key specifications | RS-232 serial mouse protocol; DB9 connector; ball mechanism on common 2.0A units; 3-button variants existed. |
| Interface / fit | Requires powered serial port, compatible pinout/protocol and driver; passive DB9-to-PS/2 adapters are not universal. |
| Variants / identification | Mouse protocol and connector revision vary; DB9 serial is not a modern USB HID device. |
| Archive record | Record full part number, hardware revision, serial/date code, firmware/BIOS, accessories, physical condition, and the documentation revision used for verification. |
Compatibility and handling
- Confirm the complete part number, connector signal/pinout, supported host, dimensions, power, firmware and operating-system requirements before use.
- Inspect for corrosion, cracked parts, bent pins, damaged insulation, failing bearings, leaking cells, or prior repair. Avoid powering unidentified or damaged hardware.
- For compatibility claims, cite a specific manual, CPU support list, interface standard, or tested host configuration; physical fit alone is insufficient.
- Record measurements with the test setup and instrument conditions; distinguish vendor maximums from measured or sustained results.
Model notes
Requires powered serial port, compatible pinout/protocol and driver; passive DB9-to-PS/2 adapters are not universal.
Mouse protocol and connector revision vary; DB9 serial is not a modern USB HID device.
Sources & further reading
- Manufacturer / standards documentation — Microsoft Serial Mouse 2.0AReference supplied for this specific model or standards family; verify full revision against the nameplate/manual.
- Manufacturer / standards documentation — Microsoft Serial Mouse 2.0AReference supplied for this specific model or standards family; verify full revision against the nameplate/manual. Original page is gone; this is the Internet Archive’s copy.
Source links may describe a product family, not the exact board revision or region. The full model-specific manual/specification takes precedence.
