[ WORKSTATION GRAPHICS CARDS // IDENTIFIED COMPONENT ]

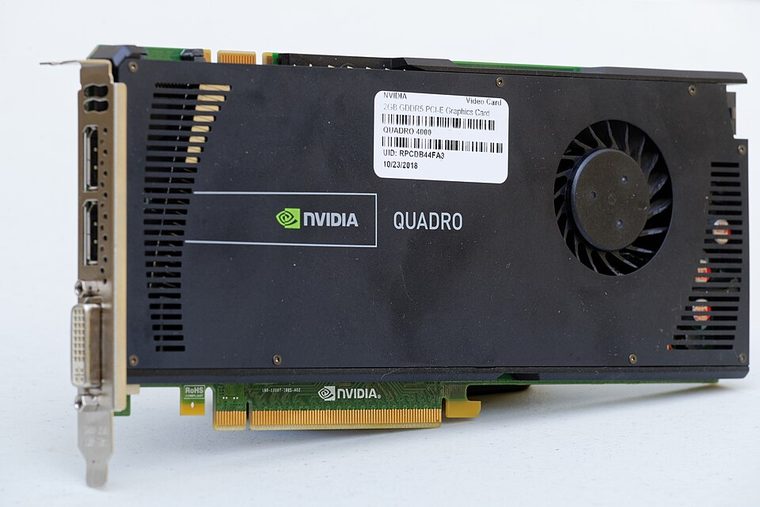

NVIDIA Quadro 4000 2 GB
Fermi workstation GPU, 2010. This entry identifies one specific product configuration; closely named models and partner-board variants are distinguished below.
MODEL IDENTIFICATION: This is 2010 Fermi Quadro 4000, not later Quadro RTX 4000. Driver branches and certification are generation-specific; modern OS support may be limited.
Recorded specifications
| Cataloged product | NVIDIA Quadro 4000 2 GB |
|---|---|
| Generation / chip | Fermi workstation GPU, 2010 |
| Core & memory | GF100GL; 256 CUDA cores; 2 GB GDDR5 on 256-bit bus; 142 W maximum board power. |
| Host interface & I/O | PCI Express 2.0 x16; one 6-pin auxiliary power connector; two DisplayPort 1.1 and one dual-link DVI-I on reference board. |
| Variant boundary | This is 2010 Fermi Quadro 4000, not later Quadro RTX 4000. Driver branches and certification are generation-specific; modern OS support may be limited. |
| Archive record | Photograph label and PCB revision; record BIOS, driver version, adapters, physical condition, and source-document revision used to verify specimen. |
Compatibility & service notes
Its 2 GB GDDR5 and 142 W rating do not describe later products sharing the 4000 name.
Inspect blower, thermal interface, and 6-pin socket; preserve firmware and full-height bracket. Check airflow and install last supported Quadro driver for target OS.
- Check slot signaling, keying, lane width, auxiliary power, clearance, and PSU requirements; physical insertion alone does not prove compatibility.
- Use drivers supporting this device ID and OS release. Preserve original driver/firmware before updates and record source.
- Do not energize cards with cracks, corrosion, damaged power sockets, obstructed fans, or suspected shorts; inspect before bench testing.
Manufacturer & standards sources
- NVIDIA Quadro 4000 product briefUse alongside the exact board label and revision; archived family data may not describe every OEM implementation.
- PCI-SIG PCI Express standardsUse alongside the exact board label and revision; archived family data may not describe every OEM implementation.
- Quadro 4000 specificationsUse alongside the exact board label and revision; archived family data may not describe every OEM implementation.
- PCtuningDE — NVIDIA Quadro 4000 | Retro-Review + TestIndependent video review; treat as supplementary context, not primary manufacturer documentation.
Specifications describe the cataloged reference configuration only. Manufacturer manuals and physical product label take precedence for a specific OEM revision.
