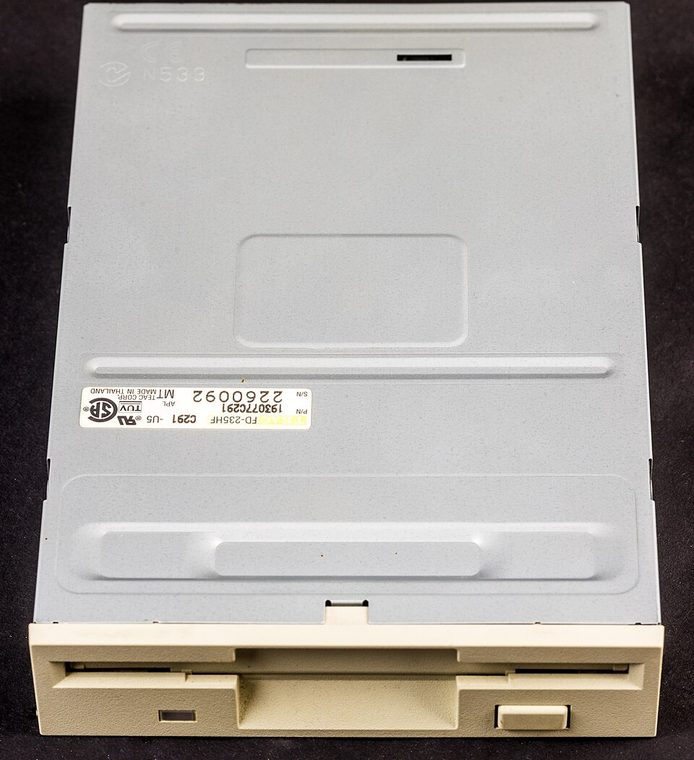

TEAC FD-235HF 3.5-inch drive family
Internal PC floppy drive, 1990s/2000s. This record describes this specific product, standard, or clearly identified family; it is not a claim that every product sold under a similar name shares these specifications.
IDENTIFICATION WARNING: Match the complete model/part number and revision to its label and manual. Family-level entries may cover revisions; values marked “common” are not guaranteed for every unit.
Specifications
| Catalog subcategory | 3.5-inch floppy mechanisms |
|---|---|
| Catalog identity | TEAC FD-235HF 3.5-inch drive family |
| Era / family | Internal PC floppy drive, 1990s/2000s |
| Key specifications | 3.5-inch; 1.44 MB high-density and 720 KB double-density support on common models; 34-pin interface |
| Interfaces / mechanical | Exact FD-235HF suffix determines connector, bezel, density, and mounting details |
| Compatibility and variants | Drive-select jumper/cable twist, media condition, and alignment affect PC compatibility. |
| Use / service note | Inspect condition, revision markings, firmware or configuration, connectors, and any prior repair. For preservation, record photographs of labels and board markings before cleaning or disassembly. |
Identification & compatibility checks
- Photograph manufacturer, full model number, revision, serial/date codes, connector faces, and included brackets or cables before installation.
- Confirm electrical interface, connector pinout, physical dimensions, power requirements, firmware/driver support, and the host device’s documented compatibility.
- Do not infer compatibility from a shared brand, socket silhouette, connector shape, or marketing family name. Revisions and regional SKUs may differ.
- When a unit’s identity is uncertain, compare component markings against the manufacturer manual and avoid applying power until the pinout and condition are known.
Context & archival notes
Drive-select jumper/cable twist, media condition, and alignment affect PC compatibility.
Useful collection fields: exact model and revision; manufacture date; board/assembly identifiers; firmware; accessories; condition; known faults; source of acquisition; and the document revision used to verify this entry. Any measured result should include test setup and method.
