[ INDIVIDUAL COMPONENT // FLOPPY DRIVES ]

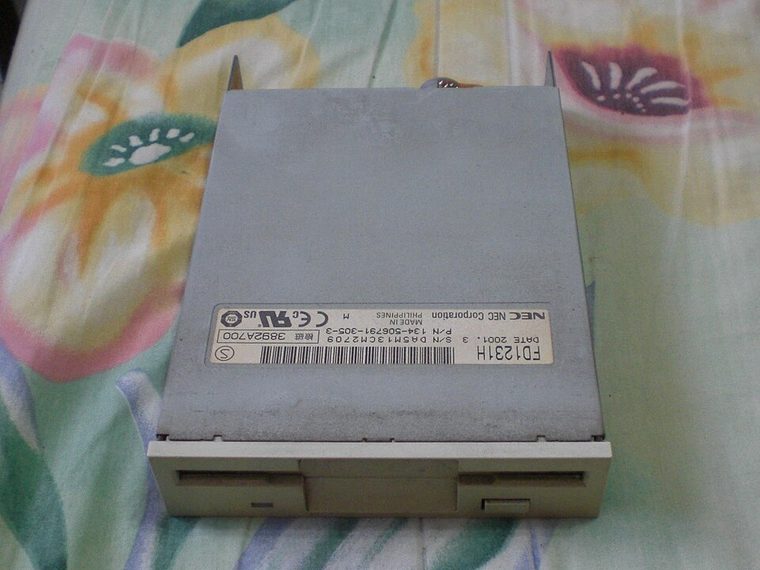

NEC FD1231H 3.5-inch Floppy Mechanism
An internal 3.5-inch magnetic disk mechanism cataloged by its complete model code. Product-family similarity is not proof of identical wiring, media support, board straps or mechanical fit.
MODEL IDENTIFICATION: NEC FD1231H. Confirm the complete label and board revision before wiring, servicing, or media access. Approximate dimensions and common PC-format operation do not replace the suffix-specific source drawings.
Documented mechanism characteristics
| Manufacturer / exact model | NEC / FD1231H |
|---|---|
| Capacity and format | 3.5-inch double-sided high-density drive: 1.44 MB HD and 720 KB DD formats. Check suffix (including FD1231H-305) against the cited sheet. |
| Interface and power | 34-pin floppy interface and separate DC drive power; not IDE/ATAPI despite occasional catalog mislabeling. |
| Data rate | 500 kbit/s HD and 250 kbit/s DD in standard PC formats; controller must provide the matching data rate and density signals. |
| Mechanical dimensions (W × H × D) | Approx. 101.6 × 25.4 × 146 mm (W × H × D); exact suffix and front-panel details can vary. |
| Jumpers / drive select | A drive-select/configuration chart is available for the FD1231H family; use the exact board/revision chart. A PC twist cable may map drive select differently from untwisted cabling. |
Controller and cable compatibility
- For ordinary PC use, confirm the controller supports the selected 3.5-inch format and rate, and use a correctly keyed 34-pin ribbon with the correct pin-1 orientation and separate drive power.
- On conventional PC twisted-ribbon cabling, cable position and drive-select straps work together to establish A:/B: addressing; untwisted systems may use different DS settings. Follow both the drive manual and host/controller documentation.
- Do not assume DOS/BIOS support for extended formats, three-mode disks, non-PC READY/disk-change behavior, or flux-level preservation from the 34-pin connector alone. Verify electrical signals and controller capability first.
Preservation and service cautions
- Inspect media for mold, oxide shedding, a damaged shutter, or debris; never insert visibly damaged media into a valued mechanism.
- Do not force the eject mechanism, move the head by hand, lubricate by guesswork, or adjust alignment without the matching service procedure and calibration equipment.
- Before cleaning/service, photograph the full label, board revision, straps, cable orientation and host setup. Preserve original media and raw disk images; verify copies and record checksums separately.
- Use known-good expendable media and stop on abnormal noise, repeated retries, head contamination or unstable reads. A filesystem copy may omit weak bits, unusual formats and copy-protection data.
Manufacturer / service-manual sources
- NEC — FD-1231H product manual (archival scan)Model-family operating/specification document.
- NEC — FD1231H-305 datasheet/manual copySuffix-specific technical details; do not assume every FD1231H build is identical.
- IBM — Personal Computer Technical ReferencePC floppy controller and cable context.
Follow model- and revision-specific documentation. Related-family manuals provide context only where explicitly noted and must not be treated as interchangeable service instructions.
