[ INDIVIDUAL COMPONENT // DISPLAYS ]

BenQ SW2700PT

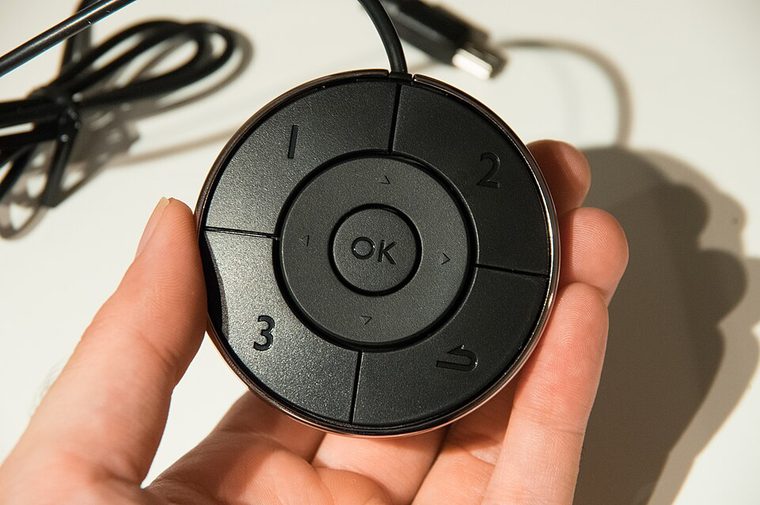

27-inch QHD photo-editing LCD with a factory shading hood, SD reader and dedicated OSD controller.

IDENTIFICATION: Match the complete model and regional suffix on the rear label. This record summarizes published specifications; it is not a substitute for the exact unit manual, cable requirements or physical condition check.

Specifications

Catalog subcategory	LCD displays
Exact product / family	BenQ SW2700PT
Panel and native resolution	27-inch IPS-family LCD, 2560 × 1440 (16:9)
Native timing	2560 × 1440 at up to 60 Hz
Inputs / companion ports	DisplayPort 1.2, HDMI 1.4, dual-link DVI-D; USB 3.0 hub, SD reader and headphone output
Revision and model distinction	Match the full SW2700PT model and region on the rear label; do not treat similarly named SW-series models as the same panel or port set. BenQ datasheet describes 10-bit color support and 99% Adobe RGB, but effective bit depth/color coverage depend on GPU, connection, software and measurement method.

Host compatibility and connection notes

Use DP, HDMI or dual-link DVI for video; the USB hub, card reader and OSD controller are separate data/control features and need their corresponding connections. Palette Master Element hardware calibration requires a supported colorimeter and compatible host software.

The controller puck, hood and calibration accessories may be absent on used units. Record the physical accessories and calibration status; do not infer calibration from the model name alone.

Preservation notes

Record the rear-label model, serial/date code, included stand/accessories, tested input, source timing, image condition and calibration state. Keep the matching manual and cable/adaptor chain with the unit; use qualified service procedures for internal work.

Manufacturer documentation and sources

BenQ — SW2700PT support and manualsOfficial manual and product downloads.
BenQ — SW2700PT datasheet (PDF)Manufacturer technical sheet for panel, inputs and advertised color capabilities.
