[ INDIVIDUAL CPU COMPONENT // ZEN 5 GRANITE RIDGE DESKTOP ]

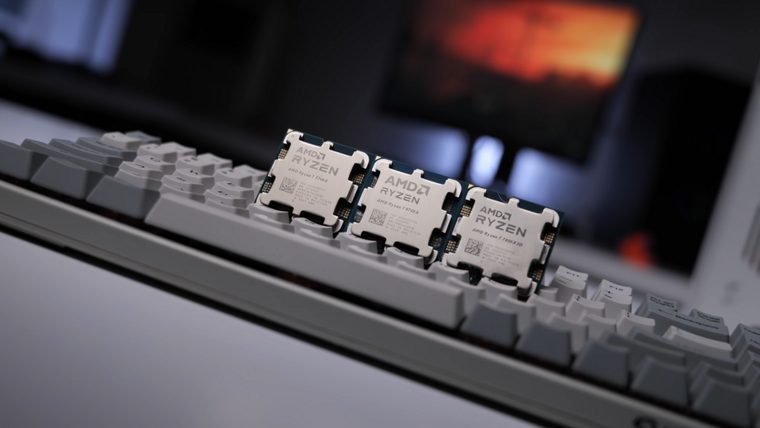

AMD Ryzen 7 9700X
Zen 5 Granite Ridge desktop; 8 cores / 16 threads, 3.8 GHz base / up to 5.5 GHz max boost, 32 MB L3 cache, 65 W default TDP. Check exact motherboard firmware and system configuration before installation.
MODEL IDENTIFICATION: This record describes AMD Ryzen 7 9700X. Confirm the full model name and package markings; adjacent Ryzen model numbers and suffixes can have different silicon, graphics, cache, power and compatibility.
Verified model specifications
| Cataloged part | AMD Ryzen 7 9700X |
|---|---|
| Architecture / family | Zen 5 Granite Ridge desktop |
| Core / thread count | 8 cores / 16 threads |
| Frequency | 3.8 GHz base / up to 5.5 GHz max boost |
| Cache | 8 MB L2 / 32 MB L3 |
| Default TDP | 65 W |
| Socket / memory | AM5 / Dual-channel DDR5 |
| Expansion / graphics | PCIe 5.0; Integrated AMD Radeon Graphics (2 graphics cores); discrete graphics optional. |
| Model distinction | Separate from the Ryzen 7 7700X and other 9000-series SKUs; use exact suffix for power, frequency and thermal settings. |
Compatibility and service notes
- Requires AM5, DDR5 memory, and motherboard firmware with explicit Ryzen 7 9700X support. Confirm board CPU support/BIOS before installation; integrated Radeon graphics provide basic display capability when board outputs are available.
- Separate from the Ryzen 7 7700X and other 9000-series SKUs; use exact suffix for power, frequency and thermal settings.
- Package and heatsink dimensions are not represented by this schematic. Confirm the exact board socket, cooler retention/mount, system power delivery and thermal solution in their manuals.
- Record the motherboard model, BIOS/AGESA version, installed memory, cooler, and exact CPU OPN/markings when documenting a working build.
Sources & further reading
- AMD — AMD Ryzen 7 9700X product specificationsManufacturer model page; source for frequency, core/thread count, cache, socket, memory, graphics and default TDP.
- AMD — Processor specifications catalogManufacturer processor specifications index; select the exact full product name when checking model data.
- AMD — Support and documentationOfficial support resources; verify motherboard-level CPU compatibility and BIOS requirements with the motherboard vendor's CPU support list.
- Gamers Nexus — Wasted Opportunity: AMD Ryzen 7 9700X CPU Review & Benchmarks vs. 7800X3D, 7700X, & MoreIndependent video review; treat as supplementary context, not primary manufacturer documentation.
Published boost frequency is a maximum, not a guaranteed sustained all-core clock. Motherboard firmware, cooling, memory configuration and workload affect system behavior.
