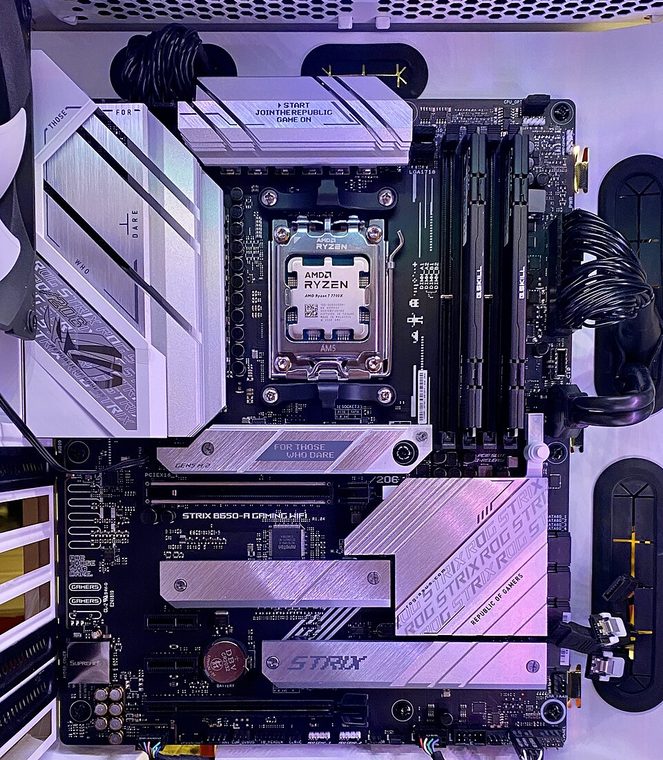

AMD Ryzen 7 7700X
Zen 4 Raphael desktop; 8 cores / 16 threads, 4.5 GHz base / up to 5.4 GHz max boost, 32 MB L3 cache, 105 W default TDP. Check exact motherboard firmware and system configuration before installation.
MODEL IDENTIFICATION: This record describes AMD Ryzen 7 7700X. Confirm the complete model name, PRO designation and package markings; similarly named Ryzen CPUs can differ in architecture, cache, graphics, power and compatibility.
Verified model specifications
| Cataloged part | AMD Ryzen 7 7700X |
|---|---|
| Architecture / family | Zen 4 Raphael desktop |
| Core / thread count | 8 cores / 16 threads |
| Frequency | 4.5 GHz base / up to 5.4 GHz max boost |
| Cache | 8 MB L2 / 32 MB L3 (40 MB total) |
| Default TDP | 105 W |
| Socket | AMD Socket AM5 |
| Memory | Dual-channel DDR5, up to 5200 MT/s; two memory channels |
| PCI Express | PCIe 5.0; 28 native lanes (24 usable). Actual slot and device support depends on motherboard layout. |
| Integrated graphics | Integrated AMD Radeon Graphics (2 graphics cores); basic display capability, motherboard display output required. |
| Motherboard BIOS compatibility | AM5 board required. Check the board manufacturer’s CPU-support page for Ryzen 7 7700X and the minimum BIOS revision for the exact board; update firmware before installation when needed. |
Compatibility and service notes
- AM5 board required. Check the board manufacturer’s CPU-support page for Ryzen 7 7700X and the minimum BIOS revision for the exact board; update firmware before installation when needed.
- Published boost is a maximum, not a guaranteed sustained all-core clock; cooling, board settings, workload and memory configuration affect operation.
- Confirm cooler mounting, power delivery and thermal solution in the motherboard and cooler manuals. Package dimensions are not represented by this schematic.
- Record the motherboard model, BIOS/AGESA version, installed memory, cooler and exact CPU markings when documenting a working system.
Sources & further reading
- AMD — AMD Ryzen 7 7700X product specificationsAMD product source for model-level core/thread count, clock, cache, socket, memory, PCIe, graphics and default TDP.
- AMD — Processor specificationsOfficial AMD processor specifications index; match the exact complete product name and suffix.
- AMD — Support and documentationOfficial support resources. Verify the minimum BIOS with the motherboard or system vendor’s CPU support list.
- Gamers Nexus — AMD Ryzen 7 7700X 8-Core CPU Review & Benchmarks vs. i7-12700KF, R9 7900X, & MoreIndependent video review; treat as supplementary context, not primary manufacturer documentation.
Processor specifications do not guarantee compatibility with every AM5 motherboard or firmware revision. Check the manufacturer’s validated CPU list before installation.
