[ IDENTIFIED ENCLOSURE // COMMODORE AMIGA 1200 (A1200), 1992 ]

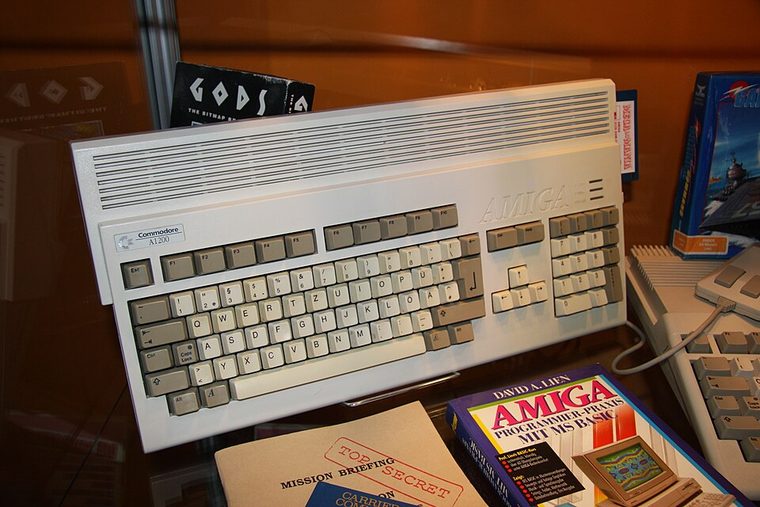

Commodore Amiga 1200 Computer Case
Keyboard computer enclosure, roughly 470 × 245 × 75 mm (W × D × H) in published hardware references; the side expansion trapdoor and rear ports need access.
VARIANT / ARCHIVAL CAVEAT: A1200 revisions vary by motherboard PCB and region; Commodore/Escom units may differ in keyboard, floppy bezel and shielding. Record board revision, RF shield and accelerator before closing case.
Mechanical specifications and fit
| Catalog identity | Commodore Amiga 1200 (A1200), 1992 |
|---|---|
| Dimensions and clearances | Keyboard computer enclosure, roughly 470 × 245 × 75 mm (W × D × H) in published hardware references; the side expansion trapdoor and rear ports need access. |
| Drive bays / mounts | One internal 2.5-inch IDE drive provision in common factory configuration; internal 3.5-inch conversion kits are third-party and require height clearance. |
| Board, system and compatibility | A1200 motherboard/keyboard and external PSU are proprietary; trapdoor accelerator/IDE expansions have height and thermal constraints and can prevent closure. |
| Revision / identification | A1200 revisions vary by motherboard PCB and region; Commodore/Escom units may differ in keyboard, floppy bezel and shielding. Record board revision, RF shield and accelerator before closing case. |
Preservation and installation notes
A1200 revisions vary by motherboard PCB and region; Commodore/Escom units may differ in keyboard, floppy bezel and shielding. Record board revision, RF shield and accelerator before closing case.
A1200 motherboard/keyboard and external PSU are proprietary; trapdoor accelerator/IDE expansions have height and thermal constraints and can prevent closure.
- Capture the complete model/SKU, serial/date label, board assembly and bay/backplane/riser identifiers before disassembly; keep matched screws, trays, carriers, feet and cables with the case.
- Check the cited manual's specific build option before transferring hardware. Published maximum GPU, drive, fan or radiator capacity may not be simultaneous when a removable cage or alternative riser occupies that volume.
- For rack and vintage systems, preserve the exact rails, shields, doors, brackets and model-specific safety instructions; do not infer compatibility from a familiar brand or physical connector shape.
Manufacturer manuals and archival sources
- Commodore Amiga 1200 User Manual — Internet ArchivePrimary manufacturer or model-specific technical/manual reference used for the identification and mechanical data above.
- Amiga 1200 Service Manual — archived service referenceSecond product manual, manufacturer resource or established technical archive; choose the exact regional SKU and revision.
When exact dimensions depend on configuration, the text says so; verify the measured specimen before making a fit or restoration decision.
